Elitegroup P55H-A first glance

by on22 August 2009

Index

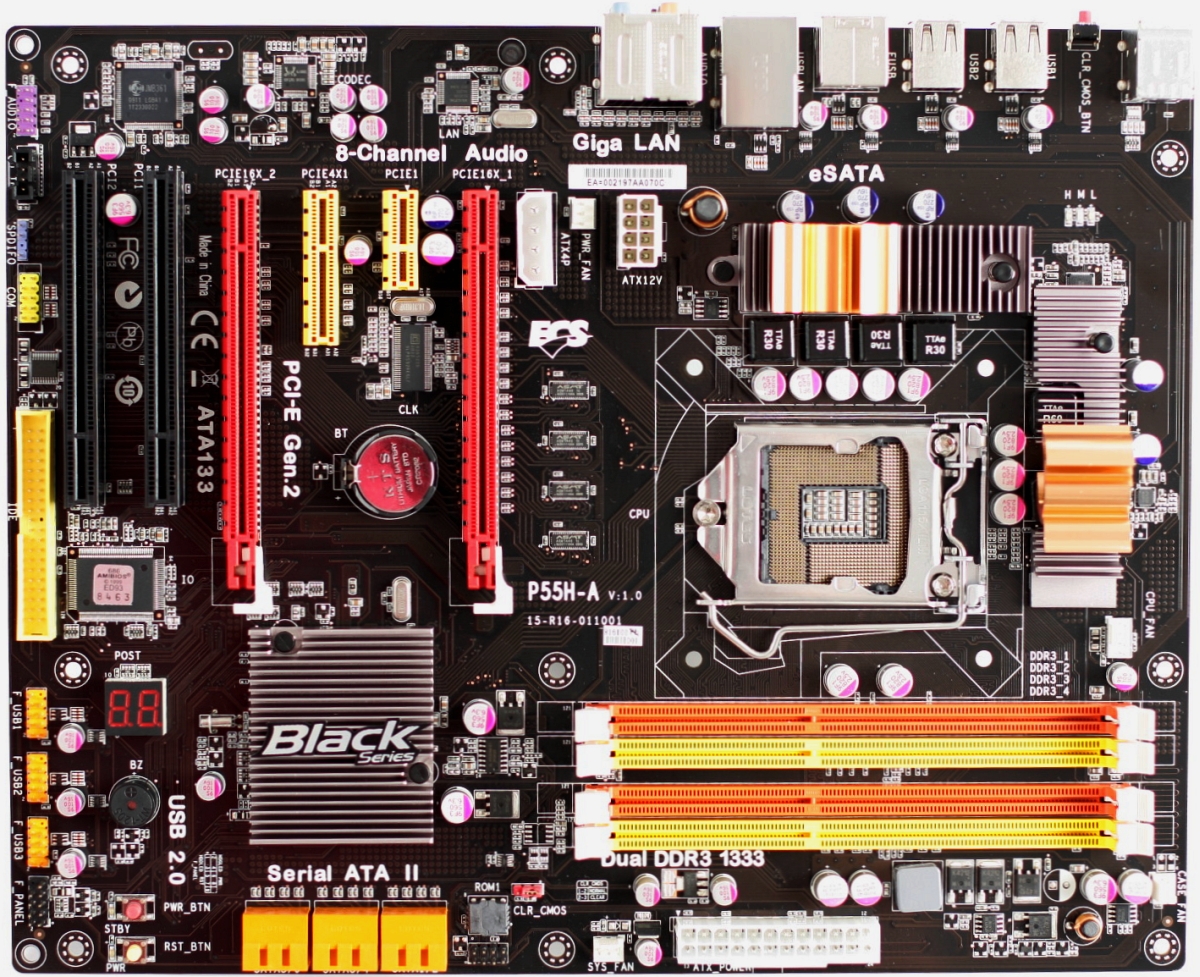

Features:
Intel P55
4+2-phase VRM
uPI semiconductors uP6206AK VRM controller cpu-portion
uPI semiconductors uP6203A VRM controller northbridge-portion
Realtek RTL8111DL PCIe Gb LAN controller
JMicron JMB361 PCIe SATA II/PATA controller
ITE IT8720F super I/O controller
Realtek ALC888S
ICS 9LPRS926EGLF clock generator


passive cooling of chipsets/VRM
8Mb BIOS, version: n/a
Mainboard Revision: 1.00

Slots:
2x PCIe 2.0 x16, 1x x16 or 2x x8
1x PCIe 2.0 x4 @ x2 speed
1x PCIe 2.0 x1 @ x0.5 speed
2x PCI

Memory:
4x Duale-Channel DDR3-slots for PC3-10667U memory up to 16GB

Storage:
6-Port SATA II featuring RAID 0, 1, 5, 0+1, JBOD
1-Port PATA

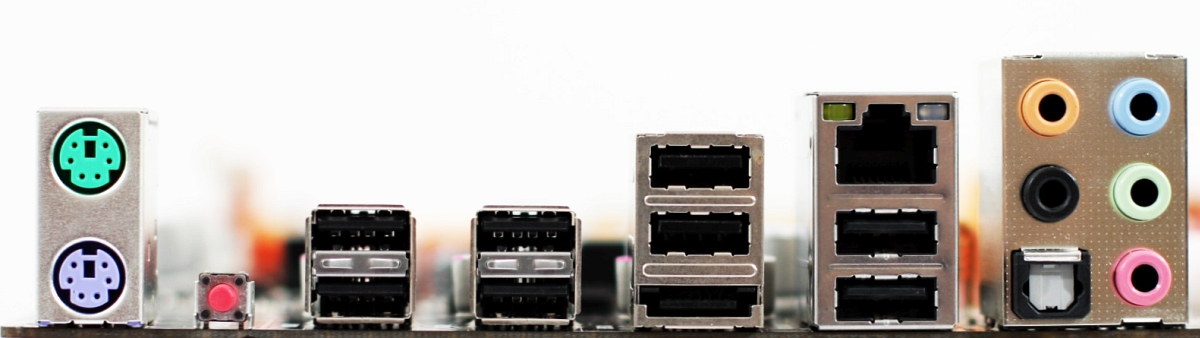

Backpanel ports:
1x PS/2 keyboard
1x PS/2 mouse
1x Gb LAN
8x USB 2.0
1x eSATA II
7.1 analog audio
1x optical audio out
1x CMOS clear button


Accessories:
4x SATA cable angled with clips
1x PATA cable
