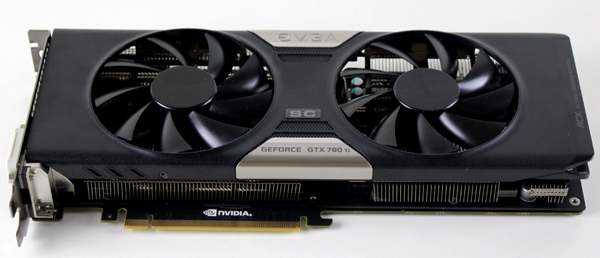

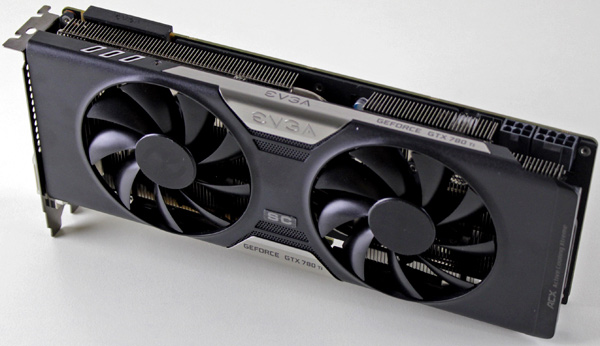

The GTX 780 Ti Superclocked ACX cooler is 27cm or just under 11 inches long and sports a dual-slot, dual-fan cooler design.
A combination of 6-pin and 8-pin power connectors is necessary to keep the card juiced up.

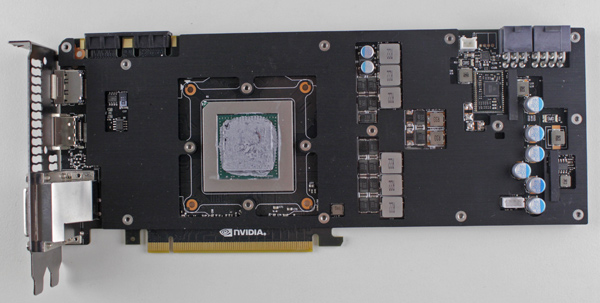

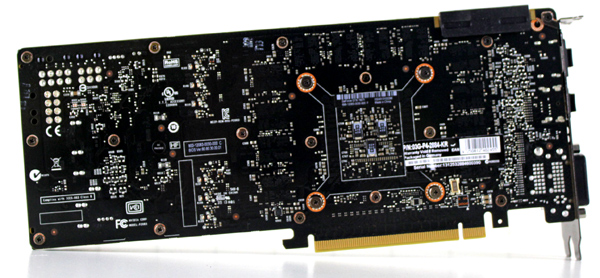

The GTX 780 Ti SC ACX PCB looks a lot like the reference GTX 780 Ti board. EVGA decided to reinforce the baseplate to strengthen the PCB and provide a bit more cooling to the memory chips and MOSFET.

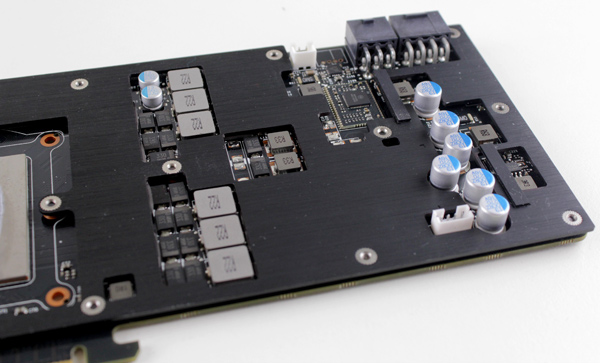

The card uses an OnSemi NCP4206 voltage controller.
The card has 3GB of GDDR5 memory. The SK Hynix chips, (model H5GQ2H24AFR-R2C) are specified to run at 1750 MHz (7000 MHz GDDR5 effective). All the memory modules at the front of the PCB are underneath the reinforcement plate.
The GTX 780 Ti SC ACX features one standard HDMI connector (1.4a compatible), one standard DisplayPort out and two DVI outs (one single-link and one double-link).

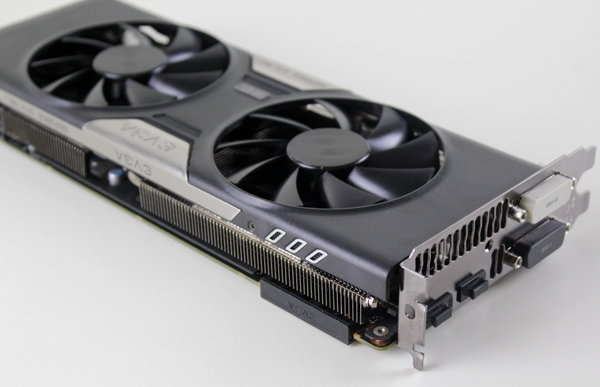

The GTX 780 Ti SC ACX is ready for multi-GPU action, be it in standard two-card SLI, or 3-way and 4-way SLI. Therefore it features two SLI connectors.
