Xigmatek Nebula tested

by on08 August 2014

Index

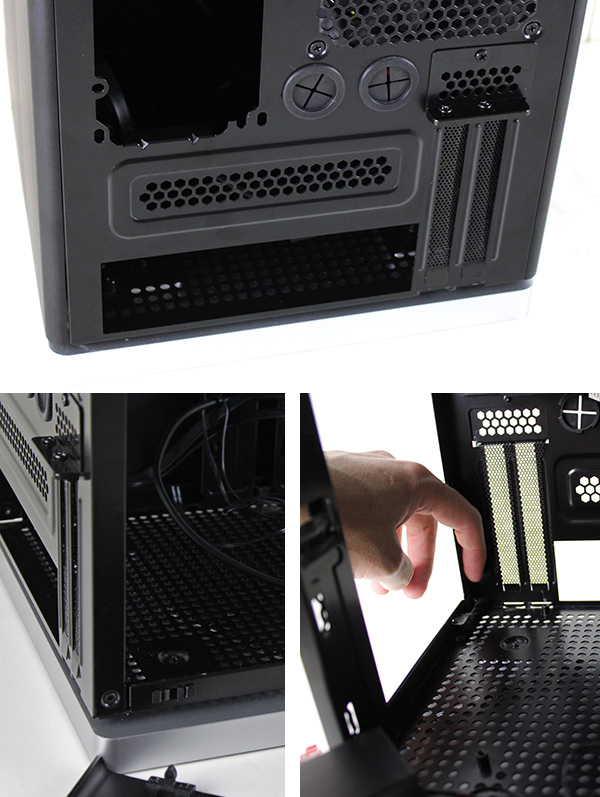

Like most compact cases, the Nebula features an extruded mount for graphics cards, which means the screw are located on the outer side of the chassis. The mount save a bit of room inside, so this approach is fairly common in small enclosures. The metal mount is removed prior to installation and screwed back in place once you get the card in there. Of course, you can choose not to use it at all.

We believe Xigmatek should have gone with a tool-less approach here, with proper screws that can be undone manually like on the Xigmatek Aquila chassis.

5-setup-nebula

A dual slot graphics card will still have enough air, as there is about a centimetre of room between the card and the side panel.

The biggest problem is the activity LED housing, which wastes space and limits the length of dual-slot cards to 175mm. For example, the EVGA GTX 750 TI FTW is 228mm long and it could not be mounted until we disassembled the LED housing.

a16-setup-nebula

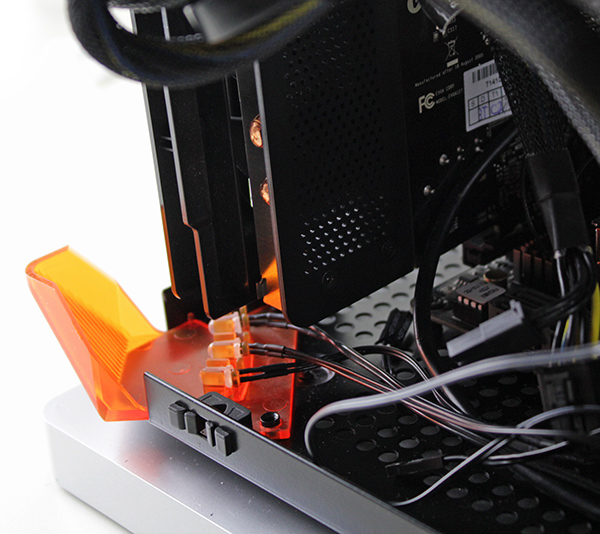

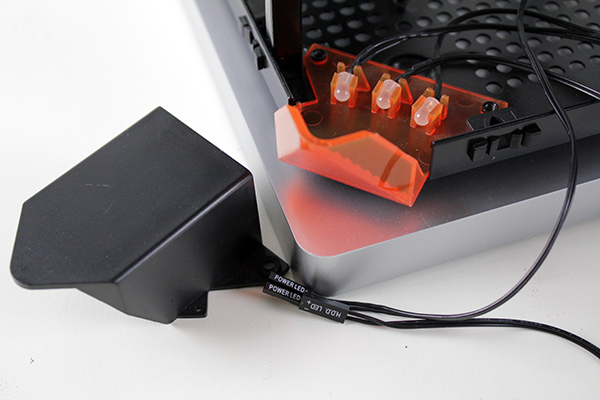

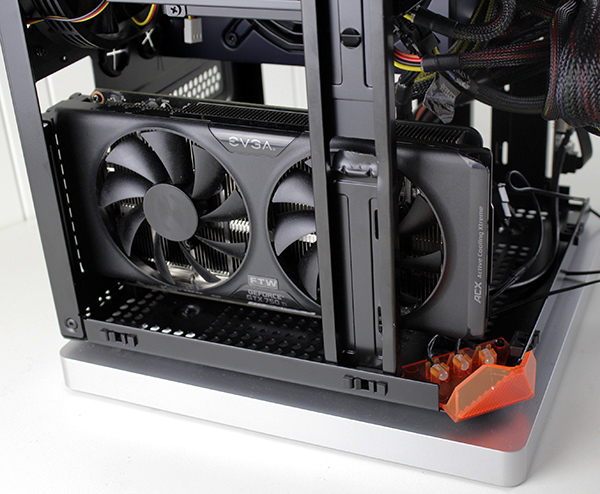

The housing itself is oversized, but luckily it is possible to remove the lid by undoing two screws. This will have no impact on the operation of the LEDs.

a16-1-setup-nebula

a17-setup-nebula

a17-1-setup-nebula

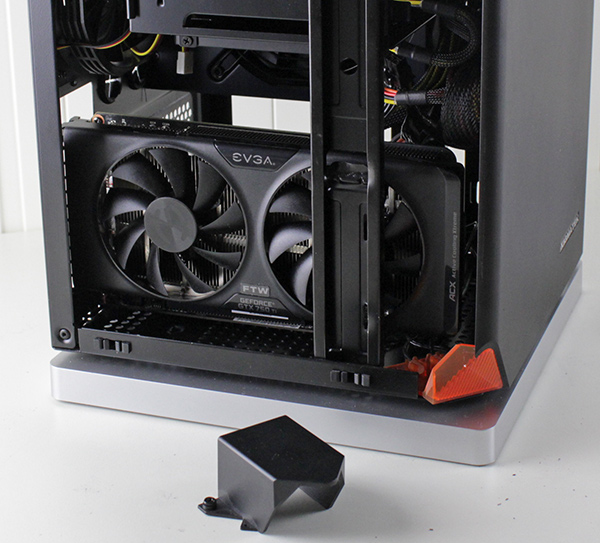

The cosmetic surgery was a success and it allowed us to install the EVGA card with room to spare.

a18-setup-nebula

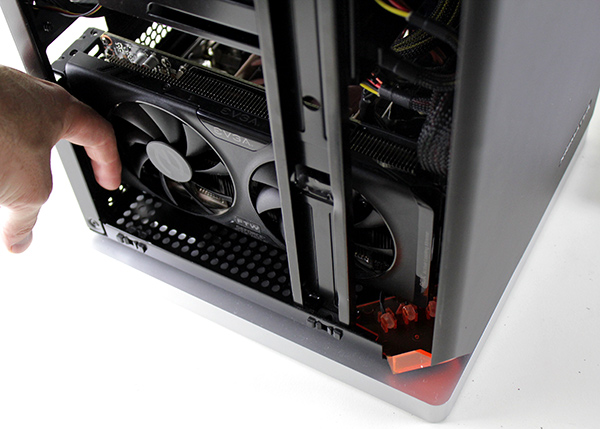

Although there is enough room on either side of the card, we still think it is a good idea to choose a blower-style card.

a19-setup-nebula

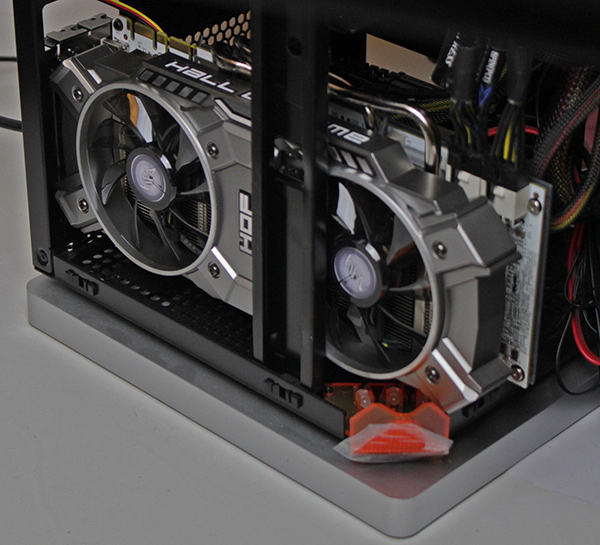

Then we started to push our luck with the HFA2 GTX 780Ti Hall Of Fame. This triple-slot card proved too long for the Nebula, but at least it was not too wide.

a20-setup-nebula

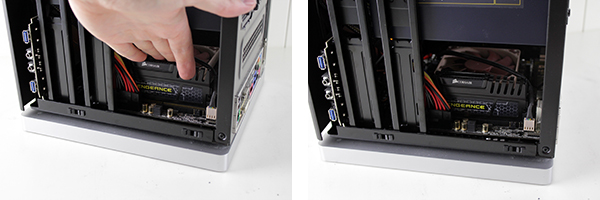

The memory modules can be installed through the right panel. Of course, there is not a whole lot of room to play around with, so bear that in mind.

a21-setup-nebula

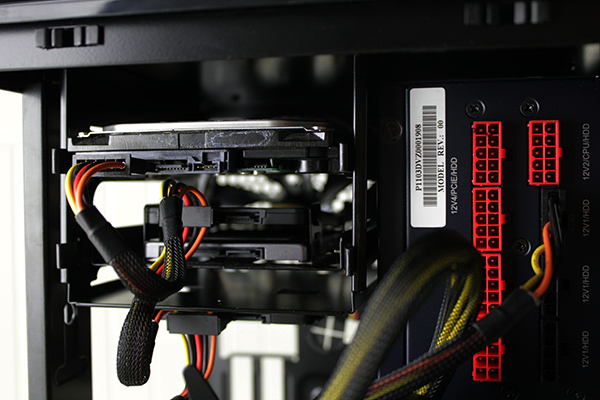

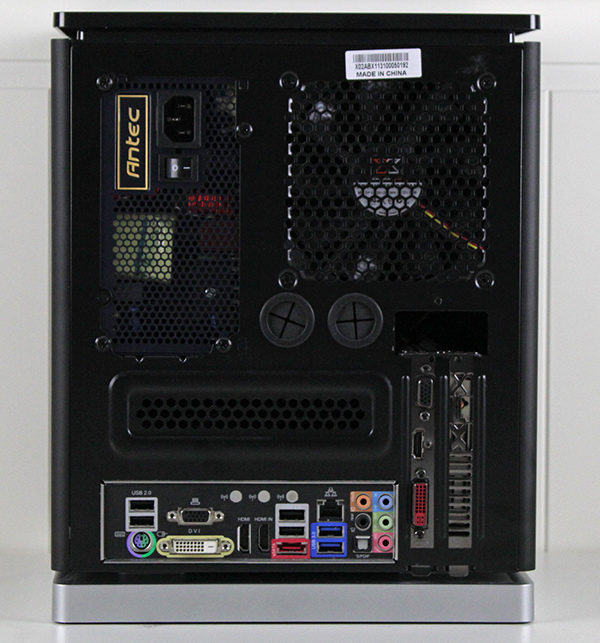

Sadly, neat cable management is not one of Nebula's selling points. It takes a lot of time and effort to arrange all the cables and a modular PSU comes in very handy indeed.

a22-setup-nebula

 a23-setup-nebula

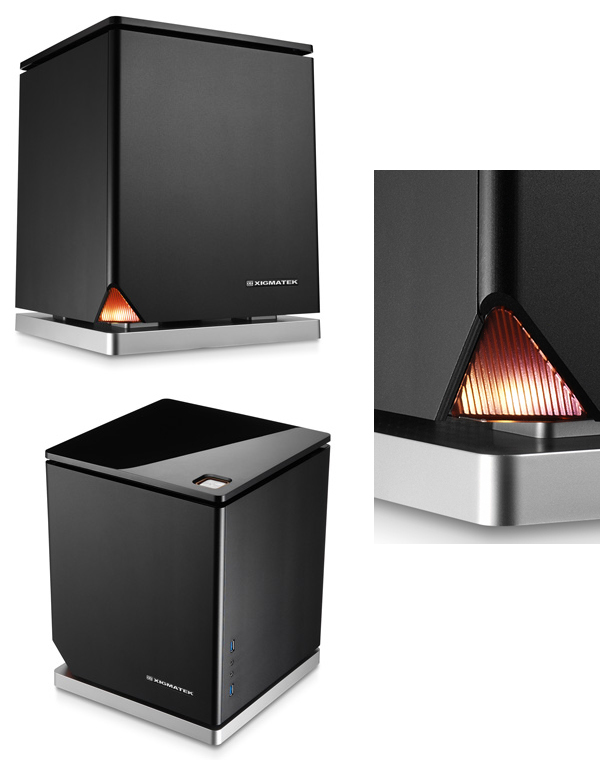

However, at the end of the day the Xigmatek Nebula is still a very attractive chassis with a couple of minor shortcomings that won't affect users who don't tinker with their rigs on a frequent basis.

The build quality is great and the included exhaust fan is very quiet. As far as cooling performance goes, the chassis can heat up due to its limited volume, but for most configurations this should not be an issue. It is easy to remove a side panel during extended gaming sessions and let's not forget that it is possible to install a compact water cooling system, too.

a24-setup-nebula
